Suitability

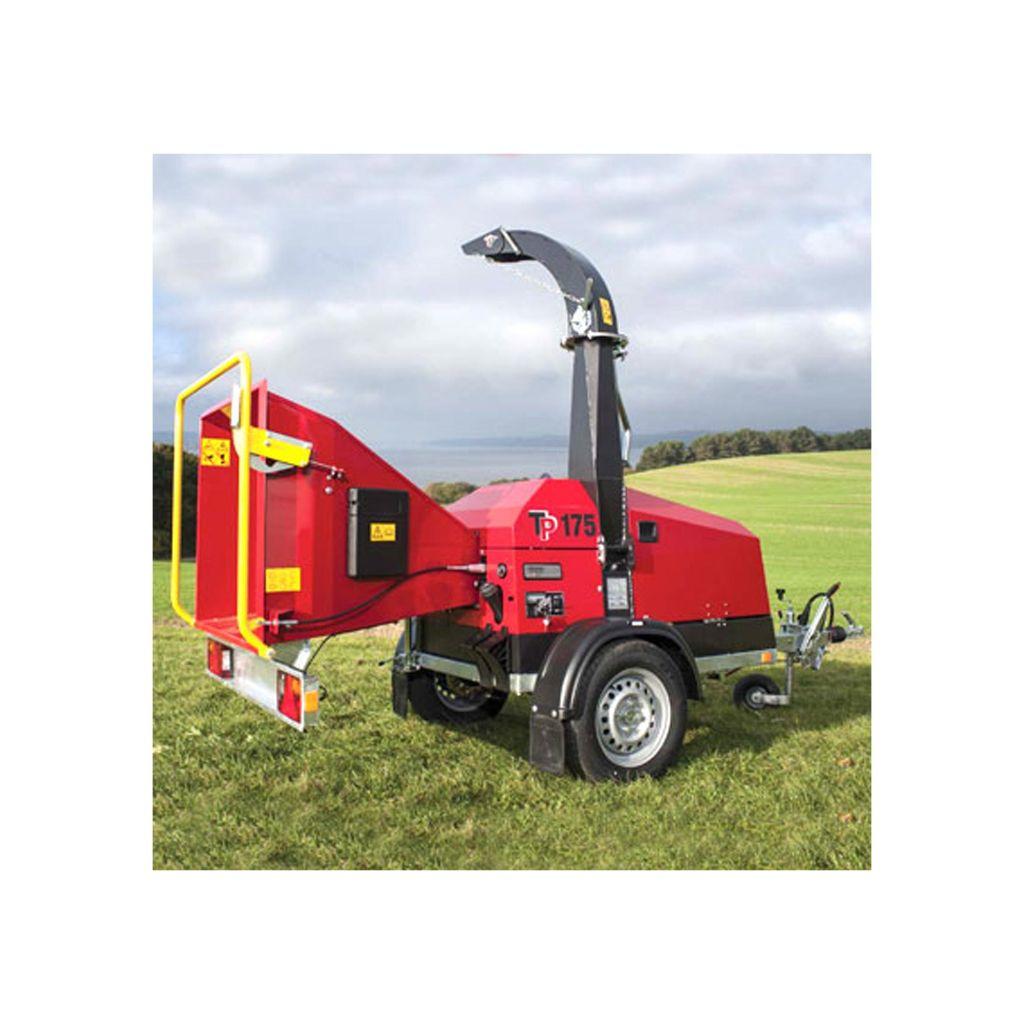

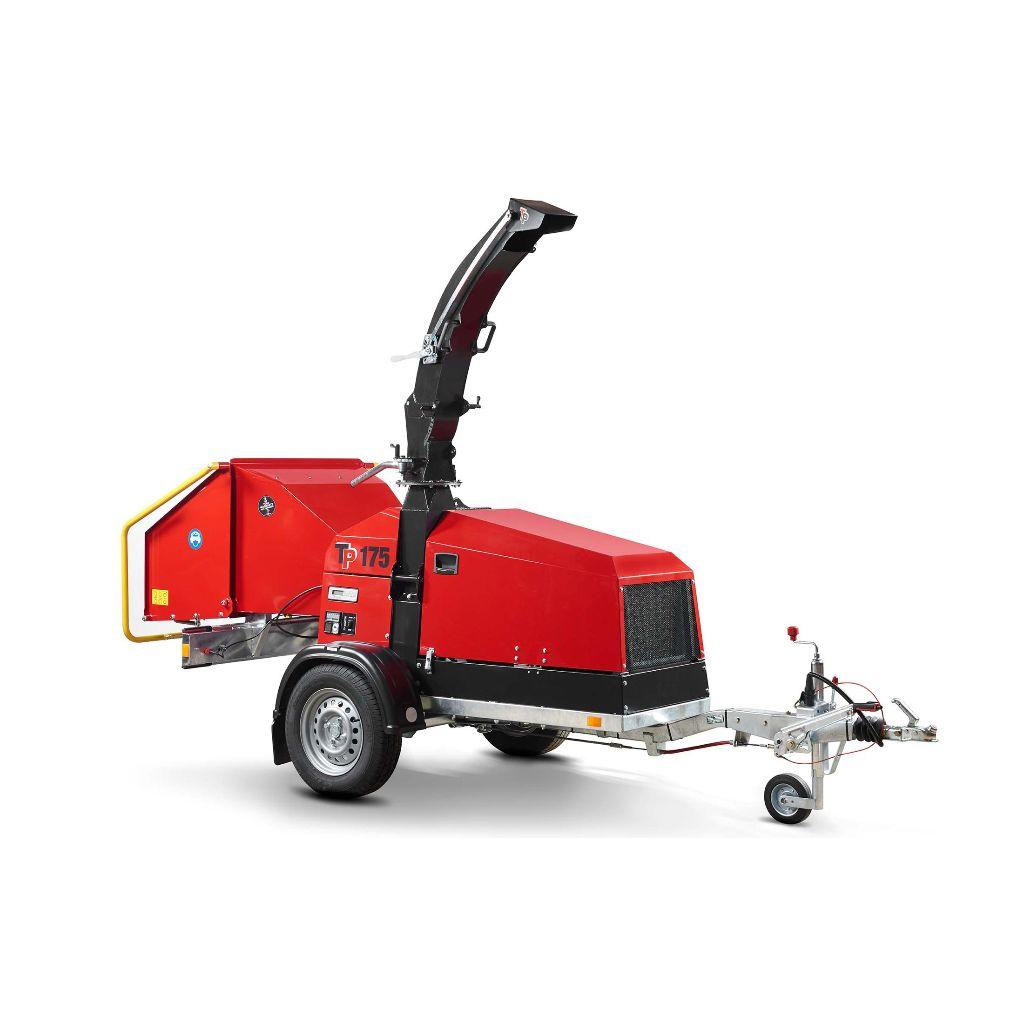

TP 175 MOBILE is a trailer-based twin disc wood chipper with a 4 cylinder 35cv diesel engine and suitable for branches up to 175 mm in diameter.
Features
Usability
With an integrated hydraulic system and 2 aggressive feed rollers a strong and problem-free feeding is ensured. Chipping proves efficient based on a fuel consumption level considerably lower than comparable machines in the market.
| Technical Data | |
| Max Wood Diameter | 175mm |
| Max Opening | H x W = 175 x 191 mm |
| Operation | Return/forward/stop of feed rollers through yellow operating bar |
| Chipper Principle | Twin disc with TP OPTICUT |
| Cutting Angle | 90 degrees |
| Hopper Placement | Parallel to driving direction |
| In Feed | 2 Hydraulic feed rollers. Spring compressed of 1 spring 8mm |
| Feed Rollers | Horizontal |
| Rotor disc – Diameter | 600mm |
| Rotor disc – Weight in kg | 69kg |
| Disc Rpm | 1625 rpm |
| Number of Knives | 2 (12x110mm) |
| Chip Length | 4-12mm |
| Anvil/Counter Steel | 1 Horizontal and 1 Vertical |
| Motor | Lombardini, 35 cv diesel, 4 cylinders, water cooled |
| Transmission | TP STARTER Automaic coupling system |
| Motor Stop Indicator in case of: | Too low oil pressure and too high temperature on cooling system |
| No Stress Control | TP PILOT Including hour counter |
| Fuel Consumption | 3.5 Litre/hour |
| Tank Volume | 20 Litres |
| Trailer | one axle trailer (140 km/h) with drawbar and breaks, galvanized |
| Chip Capacity | 5-10 m³/hour |
| Weight | < 750 kg |
To contact Chipstar Australia about Wood Chipper | TP 175 use Get a quote.
