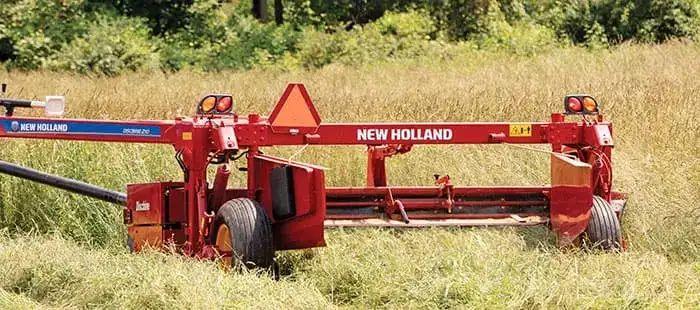

FAST, SMOOTH CUTTINGThe maneuverable 3,16m Discbine® 210 make high-quality hay with the smooth, trouble-free performance you expect from a genuine Discbine.
MOWMAX™ DISC CUTTERBARNew Holland’s MowMax™ disc cutterbar breezes through tough mowing conditions.
QUICKMAX™ BLADE CHANGE SYSTEM IS STANDARD EQUIPMENTThe QuickMax™ knife change system makes it easy to keep knives sharp for the close, clean cut you want and increased tonnage.
HIGH QUALITY AND FAST DRYDOWNChoose the best conditioning system for your crops – rubber chevron rolls, steel chevron rolls or advanced LeaningEdge™ flail tines.
Specifications:
Discbine® 210
Cutterbar
Cutting width (m)
3,16
Cutterbar model
MowMax™ Modular Cutterbar with ShockPRO™ hubs
Number of discs
8
Knives per disc
2
Disc speed @ 540 rpm PTO speed rpm
3000
Tilt angle degrees
2° - 10°
Flotation
Up & back, adjustable springs
Drive method
PTO drive with slip & overrunning clutch to bevel gearbox to LH end of header, vertical PTO shaft to cutterbar
Cutting height (mm)
Flail Tine: 29-68 or Roller: 24-60
Cutting height w/optional high-stubble shoes (mm)
58-115
Cutting height w/optional adjustable shoes (mm)
58-115
